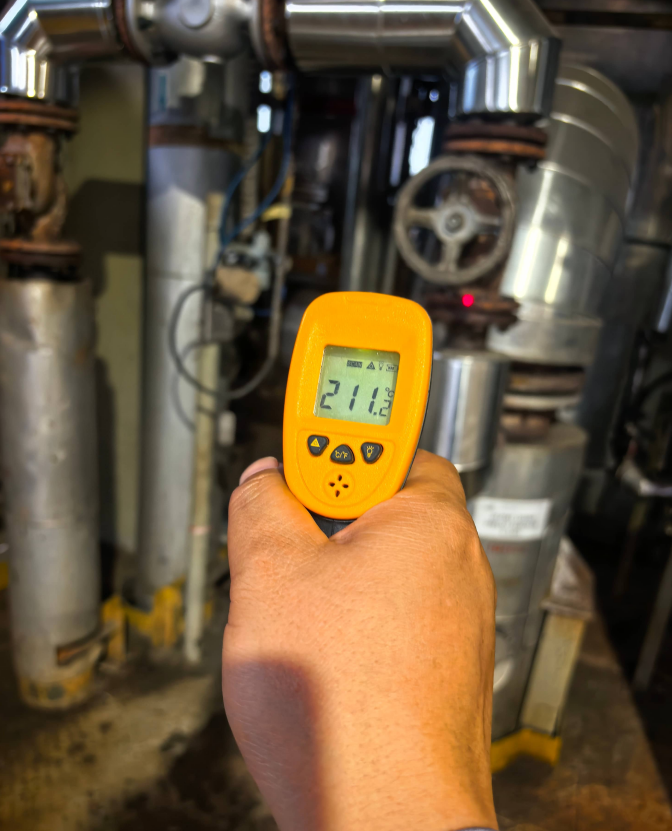

The on-site feedback pictures of Insulation Jackets in the?petrochemical workshop?show that the operating temperature is extremely high, reaching up to 210℃. With a surface temperature of 110℃, which is far beyond the human body's tolerance range, it poses a high risk of scalding to on-site operators. Meanwhile, the elevated ambient temperature around the equipment may compromise operational comfort and production efficiency.

High temperatures directly correspond to substantial heat dissipation, indicating that the energy consumed during equipment operation is not effectively utilized in the production process but wasted in the form of heat. Long-term operation will drive up energy costs.

Persistent high temperatures will accelerate the aging and wear of components such as the equipment's outer cladding materials and seals, increasing the probability of equipment failures and maintenance frequency, which indirectly raises production and operation costs.

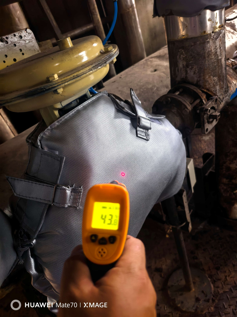

To accurately evaluate the actual energy-saving value of the equipment Thermal Insulation Sleeves, the before-and-after comparison method was adopted in this test. Under the premise that the equipment operating conditions (working temperature, load, and ambient temperature) remained completely consistent, professional instruments such as high-precision temperature sensors, heat flow meters, and electric energy meters were used to monitor the equipment surface temperature and heat dissipation loss respectively before and after the installation of thermal insulation sleeves. Taking the thermal insulation sleeve photos fed back from the on-site customer visit as an example: In this test scenario, when the equipment valves were not equipped with thermal insulation sleeves, their high-temperature surfaces continuously dissipated heat outward, resulting in the equipment temperature reaching as high as 210℃ during operation. After the thermal insulation sleeves were installed, heat dissipation was effectively blocked, and the ambient temperature around the equipment dropped directly to about 40℃.—— After installing thermal insulation sleeves on the equipment pipes and valves, the temperature dropped significantly to around 40℃, which successfully met the standard of normal equipment operating temperature. The insulation measure achieved remarkable results and effectively guaranteed the stable operation of the equipment.?
